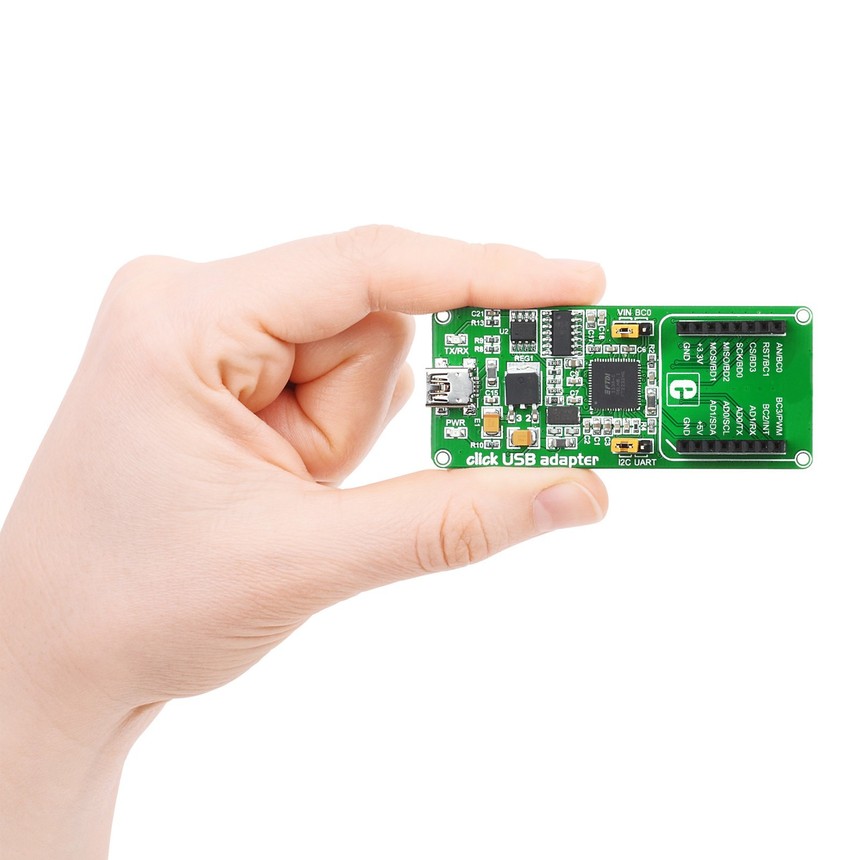

click USB adapter

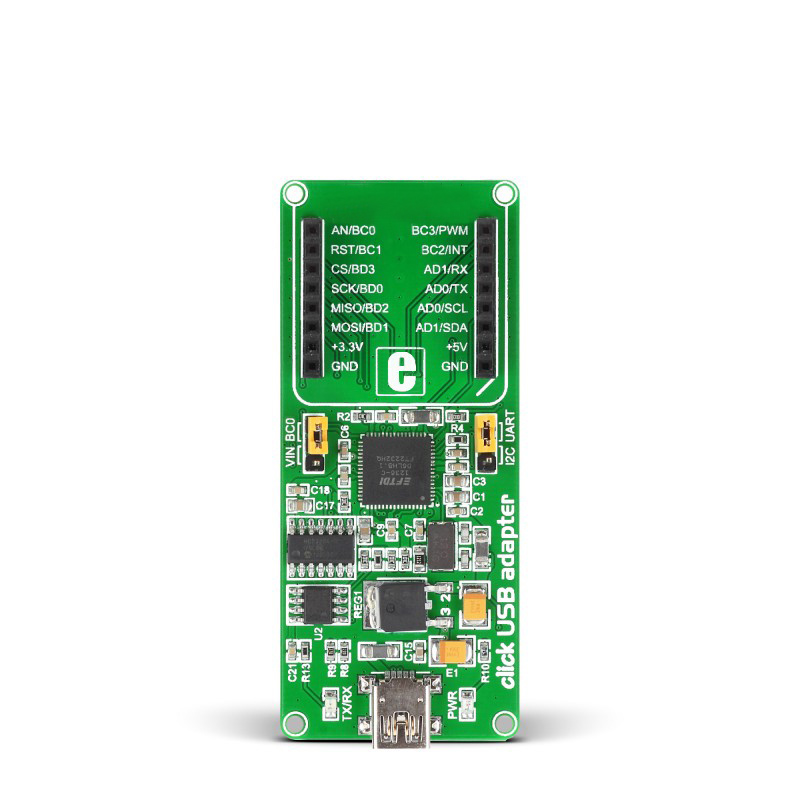

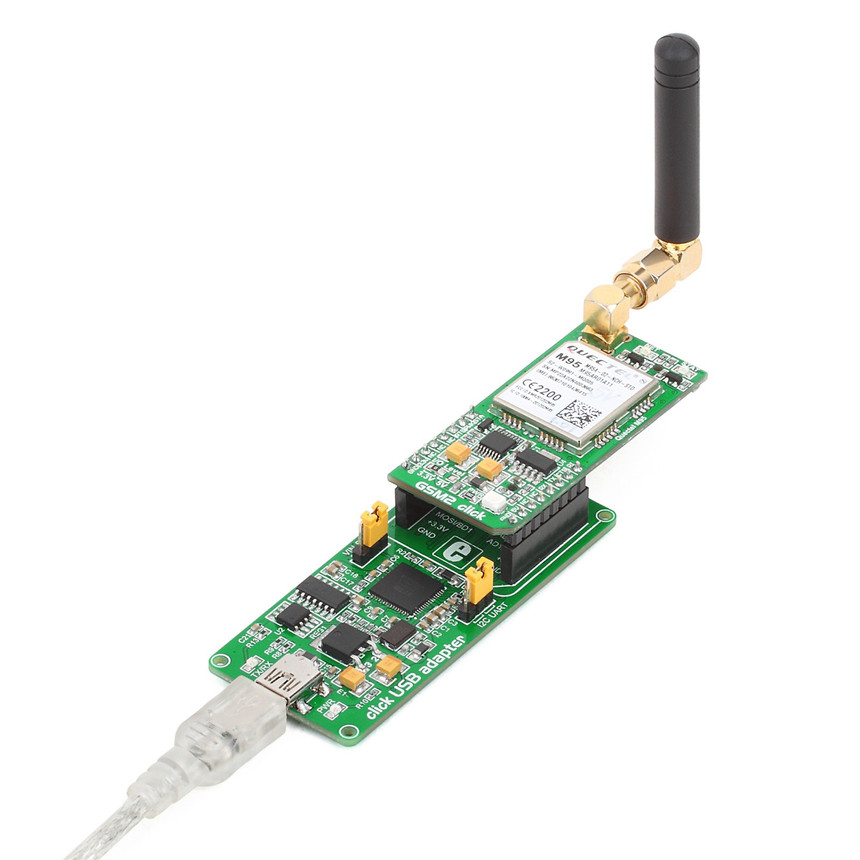

DESCRIPTION: Click USB adapter board provides the necessary interface for connecting add-on Click boards™ to your PC through high speed USB connection, without the need for microcontroller as a mediator. It features FT2232H dual high speed USB to multipurpose IC, Analog-to-Digital converter, EEPROM memory and a single mikroBUS™ host socket. Click USB adapter board can be powered through USB cable only. Two jumpers are provided on board. The J1 jumper is used to select whether UART or I2C will be used. J2 selects whether AN pin on mikroBUS™ socket will be GPIO pin, or connected to MCP3204 AD converter circuit. SPECIFICATION:
|
